STORNOWAY DINGHY DESIGNS & PLANS
UP TO 13' LENGTH





We have 2 designs up to 13' but we have now added 2 new designs - the Stornoway 14' and 16'
- see the GP Dinghies over 13' page
.


Note - In the particulars for each design, the dry weight is given for guidance only and will vary depending on the grade/density of plywood and solid wood used - different thicknesses of ply are often used by builders and the dry weight figure is based on the thinnest ply specified.
Also the Guidance Use comments are given in good faith and are based on feedback from previous builders etc and based on standard weight adults - contact us if you want further clarification before ordering/building. E & OE



ORDERING PLANS

For each design you can order either:


PRINTED PLANS sent to you by post - Postage will be added to your order - see postage costs at the bottom of the page

OR

PDF PLANS sent to your email address - make sure we have your email address when you order.



Stornoway Dinghies on this Page

Stornoway 9

Stornoway 12



STORNOWAY 9

Stornoway 9

The Stornoway 9 is the first of a new class of dinghies which incorporate firm bilges and moderately full transoms needed to carry loads safely and to give good sailing qualities without dragging a large transom through the water.

The plank shapes have been computer generated for simple stitch and epoxy construction and to make her eye sweet, she has 5 planks per side in addition to a narrow hog plank which greatly simplifies construction. She uses 3 sheets of 6mm ply for her hull and the sail rig can be added later. The bow shape can be modified to suit but a traditional stem shape is shown on the drawings.

LOD 9’1‘‘(2.77m); Beam 4’2‘‘(1.26m); Draft 6’’/2’6‘‘(.16/.76m); Sail Area 43 sq.ft(4 sq.m); Approx wht. 90 lb(41kg).

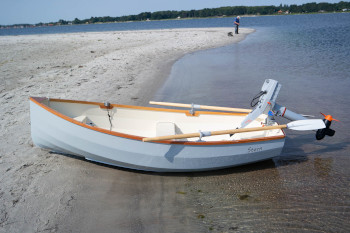

The example left is by Roger Bannister
The example right is by John Mules and is being sailed on the Norfolk Broads.

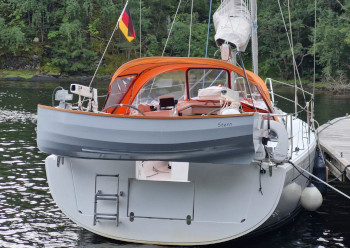

Below is an example by Dave and Jaja Martin.



Stornoway 9 Particulars

LOA 9'1" 2.77m
Beam (2 versions) 4'2" and 4'6" 1.26m and 1.37m
Hull Mid Depth 1' 6 1/2" 0.47m
Draft 6"/2'6 0.16/0.76m
Sail Area 43 sq.ft 4 sq.m
Approx. Dry Weight 90lbs 41 kg

Hull Shape

Multi-chine with 5 planks per side
Construction Method Stitch and tape - moulds/jig also given for clinker ply
Major plywood requirements for hull 3 sheets of 6mm exterior or marine plywood
Guidance Use
Drawing/Design Package 7 x A1 drawings plus 6 x A4 instruction sheets - centreboard and daggerboard details given plus lug, cat gaff main and gunter with jib rigs



ORDER THE  STORNOWAY 9 PLANS

 STORNOWAY 9 ROWING VERSION PLANS

UK/EU/US/Elsewhere - FULL PLAN £60

UK/EU/US/Elsewhere - FULL PLAN £60

(Approx. 72 Euros/$81 USD)


STORNOWAY 9 SAILING VERSION PLANS

UK/EU/US/Elsewhere - FULL PLAN £65



UK/EU/US/Elsewhere - FULL PLAN £65

(Approx. 78 Euros/$88 USD)


STORNOWAY 12
Stornoway 12
Second in what will become a classic range of craft is the Stornoway 12. She has 6 planks per side giving her a lovely round hull. The standard drawings give the plank shapes for stitch and epoxy construction but as with all our designs, we can furnish the builder with mould shapes for clinker/ ply or strip planked construction. The stitch and epoxy method is definitely the quicker and easier method and will produce a strong lightweight hull.We have given her a high peaked gaff rig which keeps the spar lengths down and which will not twist off at the head in the same way as the lower peaked gaff rig.

She has plenty of internal space with side benches and she can be built as either a rowing or a rowing/sailing craft and would be ideal for family sailing. She will take the sprit or alternative lug rigs of the Highlander 12 and could be fitted out with a fore deck area.

LOA 12’1’’ (3.67m); Beam 5’ (1.53m); Draft 6’’/3’3’’ (.16/1.0m); Sail Area 78 sq.ft. (7.3 sq.m); Approx. wht. 135 lbs (61 kg).

Note - the plans now include details for a gaff cutter rig with bowsprit.

These 2 pictures above are of a clinker/ply version by Adam Beard and the one below is by Cormack O'Conner.



Below  - the Stornoway 12 with it's gaff cutter rig.

Left - details for a balanced lug rig with 7.3 sq.m. (78 sq.ft) sail are now included with the design package.
Below is a clinker example by Lorenzo Brignone - he has used a daggerboard rather than the pivoting centreplate and increased the freeboard by 60mm by widening the top 2 strakes - Lorenzo says "the boat is really fun to sail, motor and row".
Below are two photos of a strip planked version by Stewart Brannan with lug rig.

Stornoway 12 Particulars

LOA 12'1" 3.67m
Beam 5' 1.53m
Hull Mid Depth 1' 6 1/2" 0.47m
Draft 6"/3'3" 0.16/1m
Sail Area 78 sq.ft 7.3 sq.m
Approx. Dry Weight 135 lbs 62 kg

Hull Shape

Multi-chine with 6 planks per side
Construction Method Stitch and tape - mould/jig given for clinker ply
Major plywood requirements for hull 5 x sheets of 6mm exterior or marine plywood
Guidance Use 3 adults rowing/motoring - 2 adults sailing
Drawing/Design Package 6 x A1 drawings + 8 x A4 instruction sheets - 3 rigs - gunter main with jib, gaff main with cutter rig on bowsprit and balanced lug rig with unstayed mast.



ORDER THE  STORNOWAY 12 PLANS

STORNOWAY 12 ROWING VERSION PLANS

UK/EU/US/Elsewhere - FULL PLAN £70

UK/EU/US/Elsewhere - FULL PLAN £70

(Approx. 84 Euros/$95 USD)


STORNOWAY 12 SAILING VERSION PLANS

UK/EU/US/Elsewhere - FULL PLAN £75



UK/EU/US/Elsewhere - FULL PLAN £75

(Approx. 90 Euros/$101 USD)




Back to Dinghies up to 13' Main Page



Post & Packing Charges when Ordering Printed Kayak Plans

The postal charges on individual items are:

  • UK - £5

  • EU/Europe - £11

  • USA - £18

  • Elsewhere - £18

All posted items are usually sent by Royal Mail International Tracked Service.

The Post and Packing charges for orders which include more than one item are combined to give a lower P&P charge than if the items are charged separately.

Note - if you wish to order both Printed and PDF (emailed) items, these orders are handled separately on different secure payment systems.
