OUR MODEL MOTOR BOAT PLANS



We have 6 model motor boat plans based on the most popular of the Selway Fisher Design motor boats.

Fanny the Fantail
Launch
Humber 41
Motor Barge
Power 225 Rufus 17 Windsor Slipper
Launch
Snipe 25



 FANNY THE FANTAIL LAUNCH MODEL

 This is a 1:10 scale model of Selway Fisher's Fanny the Fantail Launch which was designed for the Boatman magazine. There are many examples built all round the world both at the original 15'3" length and the extended 17'9" length. Both the full-size boat and model may be fitted with either steam power or motor.

 The model is for Balsa wood sheet construction but she could be made using ply. The plan package consists of two A1 sheets giving full model sized centre girder, frame shapes and shapes for seats, wheelhouse etc. She has plenty of room for radio gear.

 Standard rudder and sterngear equipment is used and the radio control can be the low cost Futuba Attack 2 ER two channel radio control unit (or similar) which was easily fitted and set up.

 Below are photos of the full-size Fanny launch - she was originally designed at a length of 15'3".

 Go to the Fanny The Fantail page in Selway Fisher Design site for details of the full-size launch. For those wanting to build the model as a starting point for building the full-size boat, you can purchase the model plans and study plans for the full-size boat, at a discounted price - go to the above link above to find out more.

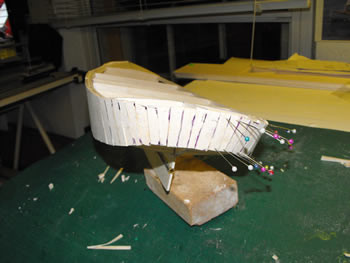

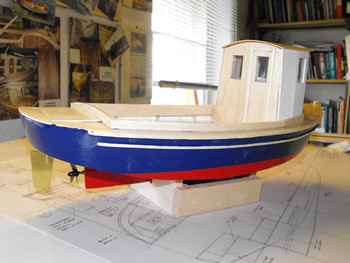

Photos of the Fanny Model Motor Boat









Photos of the full size Fanny Launch
Below are photos of the full-size Fanny launch - she was originally designed at a length of 15'3" - the photo below right is of the 17'9" version.



 Model Plans
 The model plans consist of two A1 sheet giving full-size shapes for the construction and a photo manual of her construction can be seen on the Model Motor Boat Construction page.

 Model Particulars
Hull Length 21 1/2" 540mm
Hull Beam 7 1/2" 190mm
Approx. Hull Draft 1 7/8" 47mm
Approx Weight to DWL - note
ballast is used to float her to the
correct waterline.
8.8 lbs 4 kg


 Order the Fanny the Fantail Launch Model Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

FANNY THE FANTAIL LAUNCH MODEL PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £20

UK/EU/US/Elsewhere - FULL PLAN £20

(Approx. 22 Euros/$26 USD)




41' HUMBER MOTOR BARGE MODEL

 This is a steel multi-chine motor barge for use in the waters of the UK and Europe, crossing the Channel and exploring the rivers and canals of the European mainland.

 She has a section of parallel middle-body which means that she can be stretched although at 41' she has room for extensive accommodations in what would have been her hold area. She is a rugged ocean crosser.

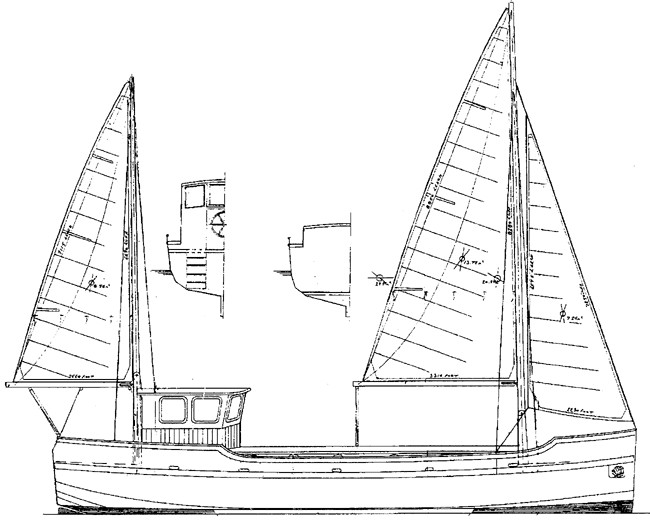

Details of the full-size Humber 41 motor barge can be found on the Selway Fisher Design web site at 41' Humber Motor Barge.

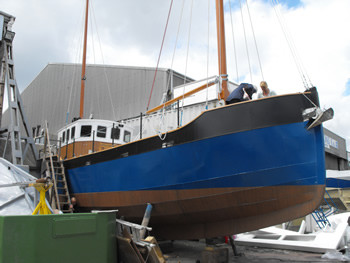

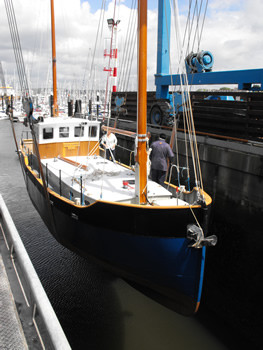

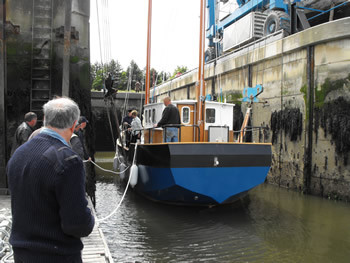

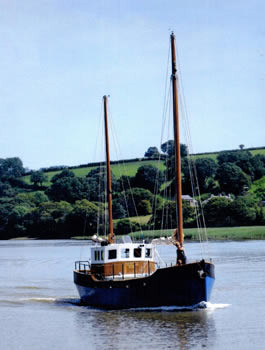

Photos of the full size 41' Humber Motor Barge.



 Model Plans
 The model plans consist of two A1 sheets - the first gives the full model sized frames, inner stem and transom shapes for a 1:20 scale model giving a model length of 0.63m (24 7/8").

 The second sheet gives side profile, plan and several sections through the launch plus and material sizes for the model. The hull would be built using the ply plank over frame method.

 Model Particulars
Hull Length 24 7/8" 630mm
Hull Beam 6 3/4" 173mm
Approx. Hull Draft 2 5/16" 59mm
Approx. Displacement Volume/Weight
(amount of underwater volume
hull can support)
10 lbs 4.5 kg


 Order the 41' Humber Model Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

41' HUMBER BARGE MODEL PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £20

UK/EU/US/Elsewhere - FULL PLAN £20

(Approx. 22 Euros/$26 USD)




POWER 225 LAUNCH MODEL

 This is a simple semi-scale Balsa model based on the Selway Fisher Power 225 aluminium 22' power cruiser which can be seen on the Selway Fisher Design site

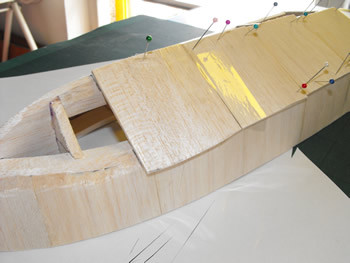

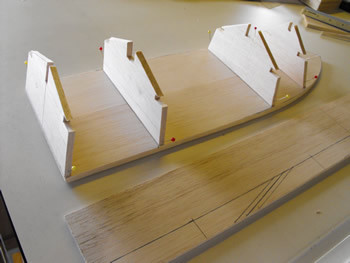

Simple sheet Balsa wood is used with the model construction based on the flat deck which is placed upside down and the bulkheads glued to it upside down. The Balsa centre girder is slotted and glued in place followed by the chines before the sheet balsa plank is glued to the framework.

A quick and simple model with startling performance. For simplicity she uses the Graupner 380 Multi-speed motor/shaft/propeller all in one power unit. The first boat used a low cost Futuba Attack 2 ER two channel radio control unit which was easily fitted and set up. The hull would be a good base for you to design your own superstructure on making her a Pilot Boat, Motor Gun Boat, Harbour Launch etc.

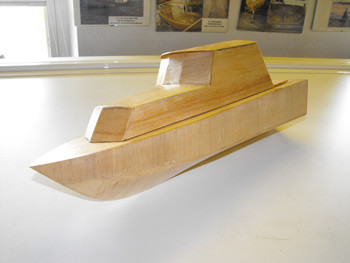

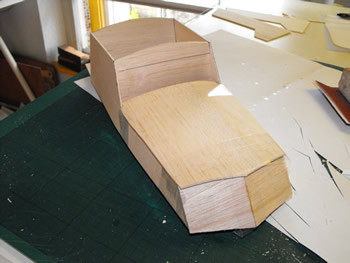

Photos of the Power 225 Model Motor Boat








 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the Balsa hull and cabin components with details of shaft/engine, rudder etc positioning plus ten A4 sheets giving a photo sequence and instructions for the model's construction and fit-out.

 Model Particulars
Hull Length 17 3/4" 450mm
Hull Beam 6" 150mm
Approx. Hull Draft 1 1/4" 30mm
Approx Weight 2 lbs 0.92 kg


 Order the Power 225 Launch Model Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

POWER 225 LAUNCH MODEL PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £12

UK/EU/US/Elsewhere - FULL PLAN £12

(Approx. 13 Euros/$16 USD)




17' RUFUS MOTOR BOAT MODEL

 Although this model may be built using plank over frame (Balsa or thin plywood), the principle method of construction shown on the drawings is for stitch and tape (tack and tape). This involves marking and cutting out the full model sized shapes given for the hull panels (planks), bulkheads and transom. The hull panels are then Sellotaped together and the transom and bulkheads fitted before all the joins and seams are finished with epoxy (Araldite type). This produces a quickly made and accurate model hull ready for fitting out.

 The original wheelhouse and open cockpit is shown on the plans but she can be fitted out in a number of different ways - below we give some photographs of the full-sized boat fitted out as a water taxi and fishing boat.

 Standard rudder and sterngear equipment is used and the radio control can be the low cost Futuba Attack 2 ER two channel radio control unit (or similar) which was easily fitted and set up.

 The hull has plenty of weight carrying capacity and would be a good base for you to design your own superstructure on, making her a Pilot Boat, Motor Gun Boat, Harbour Launch etc.

 Go to the Rufus page in Selway Fisher Design site for details of the full-size boat which can be built as a 17' or 20' boat - there is also a 22' version.

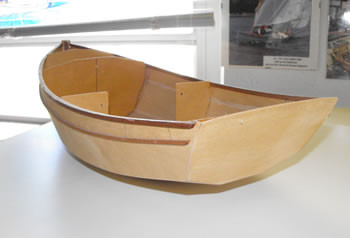

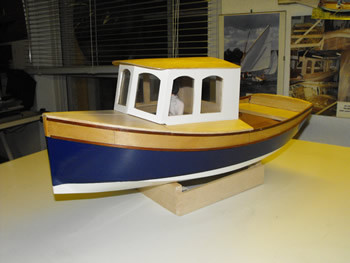

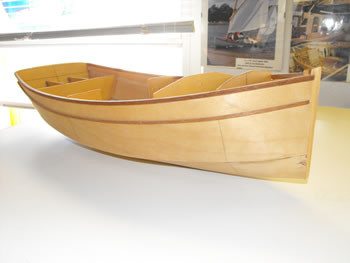

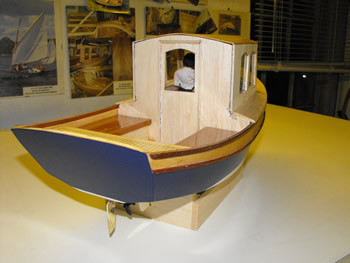

Photos of the Rufus 17 Model Motor Boat

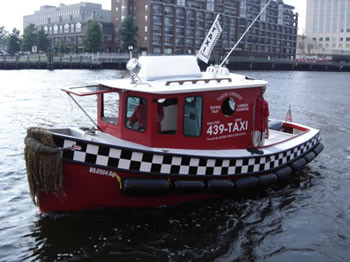

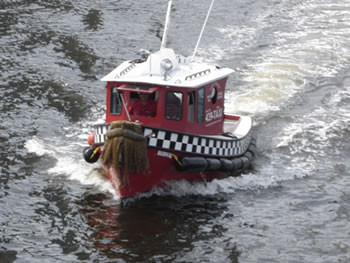

Photos of the full size Rufus Launch.

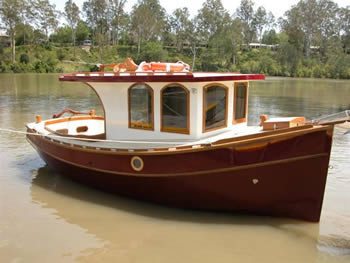

Below are photos of examples of the full-size Rufus 17 and the extended version (20') built around the world.



 Model Plans
 The model plans consist of two A1 sheets giving full-size shapes for the hull planks/panels, transom and bulkheads plus the general arrangement and fitting of model steering and motor/sterngear.

 Model Particulars
Hull Length 20 7/8" 530mm
Hull Beam 8 7/8" 226mm
Approx. Hull Draft 2" 52mm
Approx Weight to DWL - note
ballast is used to float her to the
correct waterline.
10.5 lbs 4.75 kg


 Order the Rufus 17 Launch Model Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

RUFUS 17' LAUNCH MODEL PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £20

UK/EU/US/Elsewhere - FULL PLAN £20

(Approx. 22 Euros/$26 USD)




WINDSOR SLIPPER LAUNCH MODEL

 This is a 1:15 scale working model of one of Selway Fisher's latest designs - a 25' Slipper Launch along the lines of the traditional Thames type. Construction is for Balsa sheet with Balsa frames slotted onto a fore and aft girder before chine and gunwale stringers are attached and the hull planked in thin Balsa sheet.

 Thin plywood could also be used. Whilst the real boat uses an electric pod for propulsion, the model uses a simple electric motor housed forward of the cockpit and connected to a shaft and prop. There is space for lightweight radio gear.

 Go to the Windsor Slipper Launch page in Selway Fisher Design site for details of the full-size boat.

Photos of the Windsor Slipper Launch Model Motor Boat






 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the frames and fore and aft plus the general arrangement and fitting of model steering and motor/sterngear.

 Model Particulars
Hull Length 20" 508mm
Hull Beam 5 1/8" 130mm
Approx. Hull Draft 1 5/8" 41mm
Approx Weight 2.87 lbs 1.3 kg


 Order the Windsor Slipper Launch Model Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

WINDSOR SLIPPER LAUNCH MODEL PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £12

UK/EU/US/Elsewhere - FULL PLAN £12

(Approx. 13 Euros/$16 USD)




 SNIPE 25 MOTOR LAUNCH MODEL

 This is a 1:12 (1"=1') scale model of one of Selway Fisher’s classic motor launch designs based on the Hackers and Chris Craft of the 1930’s and 40’s. The original design was to house or package twin Super Snipe engines which a client had spare an elegant shaped hull built using modern ply/epoxy techniques.

The model emulates this with simple construction in Balsa sheet with Balsa frames slotted onto a fore and aft girder before chine and gunwale stringers are attached and the hull planked in thin Balsa sheet. Thin plywood could also be used and there is space for lightweight radio gear.

Go to the 24’6” Snipe Launch section of the Classic Motor Boat page of the Selway Fisher Design site for details of the full-size boat.

 Model Plans

The model plans consist of two A1 sheets giving full-size shapes for the frames and fore and aft girder plus the general arrangement and fitting of model steering and motor/sterngear.

 Model Particulars
Hull Length 24 1/2" 622mm
Hull Beam 6 1/8" 156mm
Approx. Hull Draft 1 3/4" 45mm
Approx. Weight 3 lbs 1.36 kg


 Order the Snipe 25 Model Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

25 SNIPE MODEL PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £20

UK/EU/US/Elsewhere - FULL PLAN £20

(Approx. 22 Euros/$26 USD)






Ordering Model Boat Plans

 We are now offering our plans either as printed plans sent by post or as PDF files which are emailed to you.

 The printed plan price excludes postal charges, which will be added to the plan price when the charge is made to your debit/credit card.

 For those wanting the plans printed and posted to them the postal charges are:

 UK - £2: EU - £9; USA - £13; Elswhere - £13.

All posted items sent outside the UK are usually sent by Royal Mail International Tracked Service.
