MOTOR BOAT DESIGNS & PLANS
FOR CLASSIC MOTOR BOATS



Study Plans are available for these designs - remember a study plan gives you more details and a wood materials list usually on two A1 sheets, so that you can cost out a project before ordering the full plans. When you order the full construction plans you do not need to order the study plan as well, as all the study details are on the full plans.

We have12 classic designs, ranging in type from Slipper Launches to Runabouts and Motor yachts.



Note - In the particulars for each design, the dry weight is given for guidance only and will vary depending on the grade/density of plywood and solid wood used - different thicknesses of ply are often used by builders and the dry weight figure is based on the thinnest ply specified.
Also the Guidance Use comments are given in good faith and are based on feedback from previous builders etc and based on standard weight adults - contact us if you want further clarification before ordering/building.
Speed and power requirements are also based on feedback and estimates and are for guidance only - actual speeds attained will depend on loading etc.
E & OE



ORDERING PLANS

For each design you can order either:


PRINTED PLANS sent to you by post - Postage will be added to your order - see postage costs at the bottom of the page

OR

PDF PLANS sent to your email address - make sure we have your email address when you order.



Classic Motor Boats on this Page

15'4" Fanny

16' Egret Runabout

16' Bourne Runabout

16' Henley Slipper

16' Windsor
Slipper

18' Henley Slipper

18' Red Shrike Runabout

20' Pup Beaver Launch

21' Taranto Runabout

20/22' Kennet Slipper

25' Windsor Slipper
Launch

24'6" Snipe Runabout

24' Commuter Launch

24' Strip MY 50/60' Pintail MY



15'4" FANNY THE FANTAIL LAUNCH
We were asked to design "Fanny" for the Boatman magazine and the construction of her hull was covered in issues 30 to 37. Since then several have been built both in plywood and in steel (by Peter Nicholls Steel Yachtbuilders). She was originally based upon our successful ROSE 'V' bottomed launch which has a large carrying capacity and enough volume for steam, electric or diesel engine propulsion. The drawings give details for Fanny to be built as an open launch or with a closed wheelhouse.
The original requirement was for a tough, robust single chine 'V' bottomed launch that could be stored in the average domestic garage but still have the capacity to carry up to 6 or 8 crew. She had to have sweet lines, the ability to be adapted for different roles and ease in construction. Construction is based upon a simple framework of ply frames/bulkheads, ply fore/aft girders and stringers which is then clad in a ply hull skin. The frames define most of the fit-out so that, on turning her over, fit-out time is minimal.  LOD 15'4" (4.68m); Beam 6'3" (1.91m); Draught 1'8" (0.51m); Approx. wht. 1455 lbs (660 kg). More photos of her can be found on the Steam & Electric Launch page.

Below are photos of an example by Peter Dalby with his own cuddy/cabin - she is powered by a Yanmar 1GM10 with a 14" x 8" 3 bladed prop.



15'4" Fanny the Fantail Particulars

LOA 15'4" 4.68m
Beam 6'3" 1.91m
Hull Mid Depth 2' 4 1/2" 0.72m
Draft 1'8" 0.51m
Maximum Headroom in wheelhouse 5'9" 1.75m
Approx. Dry Weight 1455 lbs 660 kg
Engine 9 hp inboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 14 x 6mm sheets
3 x 9mm sheets
1 x 12mm sheet
Guidance Use Estuary/coastal for up to 6 adults
Drawing/Design Package 7 x A1 drawings + 7 x A4 instruction/spec sheets
Additions and alterations available 17'9" version
Sailing details
Steel construction panel shapes



ORDER THE  15'4" FANNY PLANS

15'4" FANNY PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £150

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 180 Euros/$203 USD)

15'4" FANNY PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £125

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 150 Euros/$169 USD)


To purchase the plans/details for the steel version, or for the 17'9" hull, for the Fanny Launch, go to Steam Launches up to 20' page.

New - plans to make a model of the Fanny Launch
There are now plans available for a scale model of the Fanny Launch design (17'9" length)  - go to SF Design Model Boats for details.

Note - for those builders who want to build a model of the Fanny Launch and also purchase the study plans for the full-size boat at the same time, we have discounted the combined model/study plans - see below - (£30 rather than £36 - UK/EU and £25 rather than £3 - US/Elsewhere).
Postage for the combined study/model plans will be £3 (UK); £5 (EU) and £6 (US & Elsewhere).


FANNY COMBINED STUDY/MODEL PRINTED PLANS

UK/EU/US/Elsewhere - COMBINED PLAN £40


FANNY COMBINED STUDY/MODEL PDF PLANS

UK/EU/US/Elsewhere - COMBINED PLAN £40

(Model/Study Plan approx. 48 Euros/$54 USD)





16' EGRET RUNABOUT
The Egret is a slightly simplified form of the Classic runabout - she has a plywood hull which can be overlaid with Mahogany veneer and teak decking to give a classic look. She has tumblehome aft and a 'V' bottomed hull with a single chine built over a computer faired framework. An outboard engine can be used but the plans show an inboard of around 20 hp. Seating is for 4 or 5 in two cockpits. LOA 16' (4.88m); Beam 6'1 1/2" (1.87m); Draft 1'7 1/2" (0.50m); Approx. wht 950 lb (431 kg).
This lovely example is by Mr. M. Burrell of Argyll, Scotland

16' Egret Particulars

LOA 16' 4.88m
Beam 6 1 1/2" 1.87m
Hull Mid Depth 2'7" 0.79m
Draft 1' 7 1/2" 0.5m
Approx. Dry Weight 950 lbs 431 kg
Engine Up to 20 hp inboard or 30 hp outboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 14 x 6mm sheets
2 1/2 x 9mm sheets
1 1/2 x 12mm sheets
Guidance Use 4 adults
Drawing/Design Package 7 x A1 + 5 x A4 instruction/spec sheets
Additions and alterations included with the plans Outboard mounting



ORDER THE  16' EGRET PLANS

16' EGRET RUNABOUT PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £145

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 174 Euros/$196 USD)

16' EGRET RUNABOUT PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £125

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 150 Euros/$169 USD)


16' BOURNE RUNABOUT
The 16' Bourne runabout is partly based on the Egret but with a forward raking transom and a fair amount of tumblehome in the aft quarters. She uses the same ply skin over a slotted together ply framework but the tumblehome area is planked using diagonal layers of plywood. The hull can be veneered to simulate planking or left as a plywood hull. There is also no reason why she could not be strip planked too.
Initially she is set up to use a Torquedo 2 electric outboard in a well but she should also take an inboard electric motor and a conventional rudder system. Seating is for 6.

Above - a model of the Bourne 16 with a swimming platform (details now added to the plan set) by Tim Sperryn.

Right - preparing the frames in an example by James Pryor.

16' Bourne Particulars

LOA 15' 10" 4.84m
Beam 5' 8 1/2" 1.74m
Hull Mid Depth 2'7" 0.79
Draft 1' 7 1/2" 0.5m
Approx. Dry Weight (incl. engine and excl. batteries) 827 lbs 375 kg
Engine Typically a Torquedo 2 electric outboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 14 x 6mm sheets
5 x 9mm sheets
1 x 12mm sheet
Guidance Use 4 adults
Drawing/Design Package 7 x A1 + 5 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  16' BOURNE RUNABOUT  PLANS

16' BOURNE RUNABOUT PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £145

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 174 Euros/$196 USD)

16' BOURNE RUNABOUT PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £125

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 150 Euros/$169 USD)



16' HENLEY SLIPPER LAUNCH

What better way to explore our inland water heritage than by this elegant replica Slipper Launch. She has not simply been designed for day trips, but may be fitted with folding seats to form 2 bunks and a stowable canopy and stowage for cooker and stores.
Construction is quick and simple with pre-shaped 1/4’’ ply hull panels and frames (7 sheets are used). Power may be 3-5 hp electric or petrol outboard. LOA 16’; Beam 4’4’’; Draft 8’’.


Left - full drawings for a 'V' bottomed version of the Henley 16 coming soon.

Below a nicely fitted out example

16' Henley Particulars

LOA 16' 4.88m
Beam 4'4" 1.32m
Hull Mid Depth 2'1" 0.64m
Draft 8" 0.2m
Approx. Dry Weight 300 lbs 136 kg
Engine 3-5 hp outboard

Hull Shape

Flat bottom single chine
Construction Methods Ply over frame and stitch and tape
Major plywood requirements for hull 7x 6mm sheets
Guidance Use 4 adults
Drawing/Design Package 4 x A1 drawings + 7 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  16' HENLEY SLIPPER  PLANS

16' HENLEY SLIPPER PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £120

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 144 Euros/$162 USD)

16' HENLEY SLIPPER PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £20.00/FULL PLANS £100

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 120 Euros/$135 USD)

NEW 16' WINDSOR SLIPPER LAUNCH
 The 16' Windsor is based on the original 16' Henley. I was asked in the early 90's to remodel the Henley with a 'V' bottomed hull shape and the modified hull panel shapes were originally given as an option to the Henley plans. Now I have drawn a full set of plans for this version and renamed it the Windsor 16.

 The drawings give details for a forward seating bench with aft side benches for up to 6 people but she can be fitted out in a number of ways for instance with forward whicker chairs and aft seats.

 Construction uses 6mm ply hull panels using either the stitch and tape or ply plank over frame methods.



Below is an example with open plan seating arrangement by Derek Ebbitt

Below are photos of a nice example called Miss Grace.

16' Windsor Particulars

LOA 16' 4.88m
Beam 4'10" 1.48m
Hull Mid Depth 2'2" 0.66m
Draft 1'2" 0.36m
Approx. Dry Weight 419 lbs 190 kg
Engine 3-5 hp outboard

Hull Shape

'V' bottom single chine
Construction Methods Ply over frame and stitch and tape
Major plywood requirements for hull 8x 6mm sheets
Guidance Use 4 adults
Drawing/Design Package 4 x A1 drawings + 5c x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  16' WINDSOR SLIPPER PLANS

16' WINDSOR SLIPPER PRINTED PLANS

UK/EU - STUDY PLAN £20.00/FULL PLANS £140

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 168 Euros/$189 USD)

16' WINDSOR SLIPPER PDF PLANS

UK/EU - STUDY PLAN £20.00/FULL PLANS £125

(Study Plan approx. 24 Euros/$27 USD; Full Plan approx. 150 Euros/$169 USD)



NEW  18' HENLEY SLIPPER LAUNCH

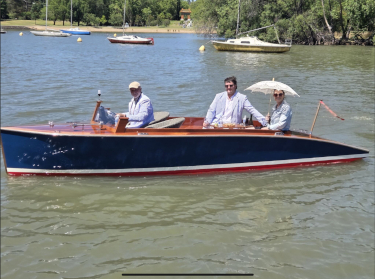

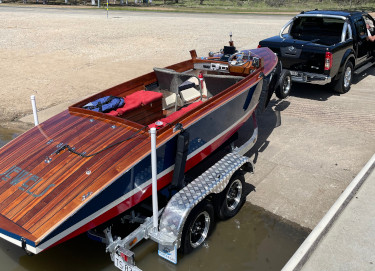

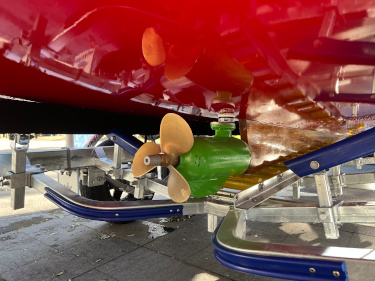

The first Henley 18 by Geoff Shallard.
.....and complete.
The plans for the 16’ Henley Slipper Launch include the hull panel shapes for a single chine “V” bottomed version and we were simply asked to take this model and stretch it to 18’ - however, instead of just developing the hull panels, we have completed a complete separate set of plans for this new 18’ version which is powered in the same low cost way by an outboard in a well aft. She has the length though to take an inboard engine if required.

The interior has the same forward double bench seat and aft side seats but this can be altered to suit.Construction uses either ply over frame or stitch and tape construction and requires 9 sheets of 6mm ply and 9 sheets of 9mm ply.

LOA 18' (5.49m); Beam 5'5" (1.66m); Approx wht. 772 lbs (350kg).

Henley 18 Particulars

LOA 18' 5.49m
Beam 5'5" 1.66m
Hull Mid Depth 2'7" 0.78m
Draft 1'5" 0.44m
Approx. Dry Weight 772 lbs 350 kg
Engine 4-12 hp

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 9 x 6mm sheets
9 x 9mm sheets
Guidance Use 4 adults
Drawing/Design Package 6 x A1 drawings + 4 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  HENLEY 18 SLIPPER  PLANS

18' HENLEY SLIPPER LAUNCH PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £175

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 210 Euros/$236 USD)

18' HENLEY SLIPPER LAUNCH PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £150

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 180 Euros/$203 USD)



18' RED SHRIKE RUNABOUT

Designed along the lines of a traditional 1930's runabout with rounded tumblehome to the topsides at the transom, the drawings detail her for construction using computer generated frames/bulkheads, transom and stem. Ribbands are then slotted into the frames and the planking (which may have a ply inner skin) is applied with the ribbands behind the seams. Decking consists of teak strips over ply so that in all respects she has a traditional appearance but uses modern building methods. She has room and strength to carry an engine of up to 125 hp.

Below is Peter Myers beautiful example.
Below are photos of a lovely example by Jonathan Jones who fitted an OMC 3 litre engine with a ZF 45A gearbox.

18' Redshrike Particulars

LOA 18' 5.49m
Beam 6' 1.82m
Hull Mid Depth 2'10" 0.86m
Draft 1'9" 0.53m
Approx. Dry Weight 3043 lbs 1380 kg
Engine 60-125 hp inboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 4 x 4mm sheets
12 x 6mm sheets
2 x 9mm sheets
4 x 12mm sheets
Guidance Use 4-6 adults
Drawing/Design Package 6 x A1 drawings + 7 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  18' REDSHRIKE PLANS

18' REDSHRIKE PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £230

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 276 Euros/$311 USD)

18' REDSHRIKE PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £200

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 240 Euros/$270 USD)


PUP - 20' BEAVER STERNED ELECTRIC LAUNCH

A 20' Beaver sterned electric launch - for simplified plywood construction using pre-shaped ply fore and aft girders and frames which slot together to give the basic shape accurately. LOA 20' (6.10m); Beam 5'1" (1.55m); Draft 1'4" (0.42m); Approx. wht. 1875 lbs ( 850 kg).

20' Pup Particulars

LOA 20' 6.1m
Beam 5'1" 1.55m
Hull Mid Depth 2' 7 1/2" 0.8m
Draft 1'4" 0.42m
Approx. Dry Weight 1875 lbs 850 kg
Engine 1.4 Kw inboard electric

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 26 x 6mm sheets
6 x 9mm sheets
4 x 12mm sheets
Guidance Use 6 adults +
Drawing/Design Package 6 x A1 drawings + 6 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  20' PUP PLANS

20' PUP PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £220

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 264 Euros/$297 USD

20' PUP PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £200

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 240 Euros/$270 USD)



21' TARANTO RUNABOUT
We have often been asked about the design of a more rakish runabout - built in much the same way as the Redshrike (a ply inner skin over frames covered with Mahogany veneer) but with more modern lines - and at last we have been asked to design one. This example has a length of 21’3” (6.5m), and a beam of 6’7” (2m). Weight is approx. 3000lbs (1361kg) depending on the engine used - engines up to 175hp may be used.

21' Taranto Particulars

LOA 21'3" 6.5m
Beam 6'7" 2m
Hull Mid Depth 3' 1 1/2" 0.95m
Draft 10" 0.25m
Approx. Dry Weight 3000 lbs 1361 kg
Engine 75-175 hp inboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 25 x 6mm sheets
5 x 12mm sheets
Guidance Use 4-6 adults
Drawing/Design Package 7 x A1 drawings + 4 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  21' TARANTO PLANS

21' TARANTO PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £220

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 264 Euros/$297 USD)

21' TARANTO PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £200

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 240 Euros/$270 USD)



20'/22' KENNET SLIPPER LAUNCH
The Kennet can be built either as a 20’ or a 22’slipper launch details and panel shapes are given on the plans for both versions. She has a ‘V’ bottom forward which flattens out as it runs aft giving an easily driven hull shape which has plenty of grip on the water. The standard arrangement has 2 cockpits with comfortable seating for 4 or 5 people. Details of engine installation based upon a Yanmar 20 hp engine are shown on the drawings along with details on how to make your own rudder but we would be pleased to advise on the installation of other units.
Construction can either be by the ply on frame method using oversized hull panels which are fixed to a conventional framework or by the stitch and epoxy method using pre-shaped ply hull panel shapes. The launch can be fitted out in basic form, or she may be used as the basis for an extensively furnished craft with teak decks etc.,
Below is a Kennet being beautifully built by Greg Clapp in Australia - and finally launched.


Below is the cockpit of an example by John Westlake.
The beautiful example below is by William Hide who built her at the Lyme Regis College of Boat Building.

Below is an example by David Watson using a 2kW Torqueedo pod.

20'/22' Kennet Particulars

LOA 20'/22' 6.1/6.7m
Beam 5'7" 1.7m
Hull Mid Depth 2'11" 0.9m
Draft 1'10" 0.56m
Approx. Dry Weight 1350 lbs 610 kg
Engine 9-20 hp inboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 9 x 6mm sheets
11 x 9mm sheets
Guidance Use 4-5 adults
Drawing/Design Package 5 x A1 drawings + 4 x A4 instruction/spec sheets
Additions and alterations included with the plans Panel/frame shapes for 21'9" x 5'7" (6.63 x 1.7m) version



ORDER THE  20'/22' KENNET SLIPPER  PLANS

20'/22' KENNET SLIPPER PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £200

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 240 Euros/$270 USD)

20'/22' KENNET SLIPPER PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £175

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 210 Euros/$236 USD)

NEW 25' WINDSOR SLIPPER LAUNCH
For the Windsor slipper launch we have used the ply over frame method of construction using a modern framework of ply bulkheads and frames partly linked by fore and aft ply girders all set up to make sure that the builder starts with an accurate base on which to fit chine strangers and then the ply planking. There is no reason why she could not be built using the stitch and tape method and we can develop the hull panel shapes for this which would use the same framework used for the ply over frame method.
The hull could also be planked conventionally or Mahogany veneers can be put over the ply inner skin for those who want a varnish finish. Thin strips of Teak are applied over a ply under deck so that she can look like an original Thames slipper.
The cockpit is open and seating can be arranged to suit individual requirements or a fixed bench front seat can be fitted dividing the cockpit into two.
For simplicity the drawings show power delivered by a 2/5KW electric drive pod making installation very simple but for those wanting a more conventional inboard diesel arrangement we also give the engine installation drawings from the Kennet slipper launch for guidance.

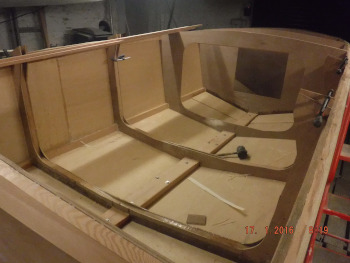

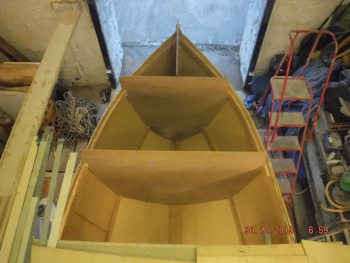

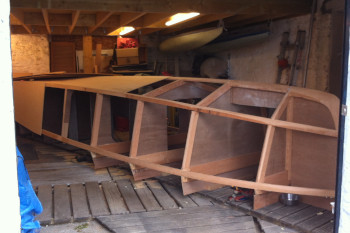

Right is the framework for a scale model built from the Windsor 25 plans for the full-size boat by Tim Rigg.

New - plans to make a model of the Windsor 25
There are now plans available for a 20" (510mm) working scale model of the Windsor 25 slipper launch design for Balsa or thin ply construction fitted with radio control - go to SF Design Models for details.



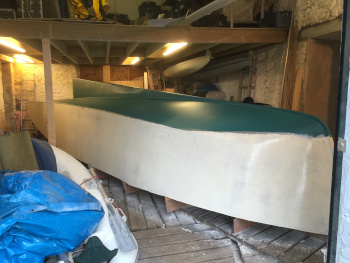

Below and right are photos of  a beautifully made model of the Windsor 25 by Kenneth Grounsell.


25' Windsor Slipper Launch Particulars

LOA 25' 7.64m
Beam 6'4" 1.93m
Hull Mid Depth 3' 1" 0.94m
Draft 1'6" 0.0.45m
Approx. Dry Weight 2095lbs 950 kg
Engine 2.5Kw electric or 20-30 hp inboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 14 x 6mm sheets
10 x 9mm sheets
3 x 12mm sheets
Guidance Use 4-6 adults
Drawing/Design Package 6 x A1 drawings + 5 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  25' WINDSOR SLIPPER  PLANS

25' WINDSOR PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £230

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 276 Euros/$311 USD)

25' WINDSOR PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £200

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 240 Euros/$270 USD)



24'6" SNIPE RUNABOUT
This was an interesting way to start a design. The client had a couple of Super Snipe engines kicking about and he wanted to sell them. What better way to do it and to get the greatest return for his money than to package them. The package that we chose was a 1930’s style runabout similar to the old Hackers and Chris Craft, but instead of using traditional methods of construction, we have made things easy and quick by using stitch and epoxy methods throughout with pre-shaped ply frames, girders and hull panels. The frames and girders are simply slotted together. The standard arrangement has a forward control cockpit with bench seat with a large aft seating cockpit. LOA 24’6’’; Beam 6’; Overall weight approx. 2200 lbs. Note, the drawings now give detils for ply over frame construction with stringers.

24'6" Snipe Particulars

LOA 24'6" 7.47m
Beam 6' 1.83m
Hull Mid Depth 3'1" 0.94m
Draft 1'10" 0.55m
Approx. Dry Weight 2200 lbs 998 kg
Engine up to 120 hp inboard

Hull Shape

V bottom single chine
Construction Methods Ply over frame
Major plywood requirements for hull 19 x 6mm sheets
17 x 9mm sheets
1 x 12mm sheet
Guidance Use 6 adults
Drawing/Design Package 7 x A1 drawings + 9 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  24' 6" SNIPE  PLANS

24' 6" SNIPE PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £230

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 276 Euros/$311 USD)

24' 6" SNIPE PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £200

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 240 Euros/$270 USD)




24' ORWELL COMMUTER LAUNCH
Below, the first Orwell under construction by Lukas van Helden

 A slightly modern 'take' on a classic type of launch - many built in the mid 20th Century were much larger so this is a mini version. Half the launch is outside seating in an open cockpit and half is simple accommodation in the form of a couple of bunks/seats, and space for a small galley and wc. The hull shape has a classic 'tumblehome' aft with 'flare' in the topsides towards the bow.

 Construction is strip planking over moulds with the bulkheads used as 'permanent' moulds on the building jig. she will jog along happily with a 35hp engine but can take up to 60 or 70 hp.

24' Orwell Commuter Launch Particulars

LOA 24' 7.31m
Beam 7'9" 2.35m
Hull Mid Depth 3'6" 1.05m
Draft 2'5" 0.73m
Approx. Dry Weight 3308 lbs 1500 kg
Engine up to 70 hp inboard

Hull Shape

Round bilge with tumblehome aft and flare forwards
Construction Methods Strip plank.
Major strip plank requirement 950m of 18x33 Western Red Cedar (3115ft of 3/4"x1 1/4")
Guidance Use 6 adults
Drawing/Design Package 8 x A1 drawings + 6 x A4 instruction/spec sheets
Additions and alterations included with the plans



ORDER THE  24' ORWELL COMMUTER LAUNCH  PLANS

24' ORWELL PRINTED PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £275

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 330 Euros/$371 USD)

24' ORWELL PDF PLANS

UK/EU/US/Elsewhere - STUDY PLAN £25.00/FULL PLANS £250

(Study Plan approx. 30 Euros/$34 USD; Full Plan approx. 300 Euros/$340 USD)



24' STRIP PLANKED MOTOR YACHT
This was a commission just for the computer generated and faired mould shapes and building jig details for a 24' x 8'6" motor yacht of traditional appearance. The concept is to have a forward cabin with 2 berths plus wc and galley and either a short wheelhouse with large aft cockpit or a longer wheelhouse with dinette. All the details are shown for the set up of the building jig ready for strip planking and we can either advise on the hull and deck/cabin construction or we can draw up details. Likewise, we can either give the machinery/rudder details from one of our other similar sized designs or we can draw up details for these.

24' Strip Planked MY Particulars

LOA 24' 7.32m
Beam 8'6" 2.59m
Hull Mid Depth 4'1" 1.25m
Draft 1'5" 0.44m
Approx. Dry Weight
Engine 35-50 hp inboard

Hull Shape

Round bilge
Construction Methods Strip plank
Major plywood requirements for hull
Guidance Use
Drawing/Design Package 3 x A1 drawings (moulds and jig only)
Additions and alterations included with the plans



ORDER THE  24' STRIP PLANKED MY (HULL MOULDS & JIG)  PLANS

24' STRIP PLANKED MY JIG/MLD PRINTED PLANS

UK/EU/US/Elsewhere - PLAN £100


24' STRIP PLANKED MY JIG/MLD PDF PLANS

UK/EU/US/Elsewhere - PLAN £100

(Jig/Mld Plan approx. 120 Euros/$135 USD)






50'/60' PINTAIL MOTOR YACHTS
We have construction details for the hulls only of two 1930's style motor yachts. The first, shown above has a LOD of 60' (18.3m), beam of 13'11" (4.24m), draft of 3'8" (1.10m) and displacement of 30 tons (30.4 tonnes) and uses a simple form of ply construction. This is based upon a central ply girder and ply bulkheads. The side planking is ply which may be pre-shaped. The bottom is arched and made up from 3 layers of ply and the round bilge is strip planked in the same way as our 23'5" East Coast Lugger.


The second example has an LOD of 50' (15.25m); beam of 11' (3.36m) and a draft of 3'7" (1.09m). The hull in this case is constructed of steel and has a similar layout to that of the 60 footer. For an overview, the G.A. drawing of each yacht plus the hull construction drawing costs £25 each.

Hull construction details cost £325 for the 50' yacht and £375 for the 60' yacht. We can draw up details for deck, superstructure, internal fit-out, machinery installation etc for each yacht as required.

Note - also see the 38'6" Linnet  - additional set of details for a deckhouse "Flat Top" version - go to Steam over 30'.

50'/60' Pintail Particulars

LOA 50' and 60' 15.25m and 18.3m
Beam 11' and 13'11" 3.36m and 4.24m
Draft 3'7" and 3'8" 1.09m and 1.1m

Hull Shape

Round bilge
Construction Methods Steel (50') and ply (60')
Guidance Use Offshore
Drawing/Design Package 5 x A1 drawings (50')
6 x A1 drawings (60')
Additions and alterations included with the plans



ORDER THE  50' MY (HULL ONLY)  PLANS

50'  MY (HULL ONLY) PRINTED PLANS

UK/EU/US/Elsewhere - HULL PLAN £350

(Hull Plan approx. 420 Euros/$473 USD)


50'  MY (HULL ONLY) PDF PLANS

UK/EU/US/Elsewhere - HULL PLAN £325

(Hull Plan approx. 390 Euros/$439 USD)


ORDER THE  60' MY (HULL ONLY)  PLANS

60'  MY (HULL ONLY) PRINTED PLANS

UK/EU/US/Elsewhere - HULL PLAN £400

(Hull Plan approx. 480 Euros/$540 USD)


60'  MY (HULL ONLY) PDF PLANS

UK/EU/US/Elsewhere - HULL PLAN £375

(Hull Plan approx. 450 Euros/$506 USD)




Back to Motor Boats Main Page

Post & Packing Charges when Ordering Printed Motor Boat Plans

The postal charges on individual items are:

  • UK - £5

  • EU/Europe - £11

  • USA - £18

  • Elsewhere - £18

All posted items are usually sent by Royal Mail International Tracked Service.

The Post and Packing charges for orders which include more than one item are combined to give a lower P&P charge than if the items are charged separately.

Note - if you wish to order both Printed and PDF (emailed) items, these orders are handled separately on different secure payment systems.
