OUR MODEL CANOE PLANS





We have 5 model canoe plans based on the most popular of the Selway Fisher Design canoes.
Christine Little Kate Peterborough Prospector Raven

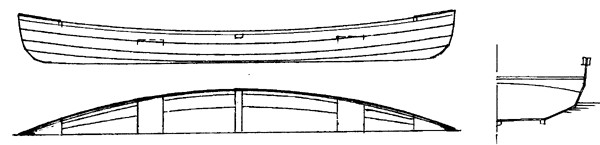

CHRISTINE OPEN TREKKING CANOE MODEL
 This is a model of one of Selway Fisher's most popular canoe designs - she was originally designed for a client in Australia who wanted a lightweight canoe to explore the outback with.

 A couple of hundred Christine's have been built all round the world, some by schools and training organizations. More details of the full-size canoe can be found at  Selway Fisher Design Christine. The full-size Christine has a length of 13'9" and a beam of 31".

 Construction uses 0.4 - 0.75mm aircraft modeling plywood and the tack and tape (stitch and tape) construction method. The plans give full-size plank shapes and seat shapes etc for the model. The planks are cut out of the thin plywood using scissors and held together with Sellotape before the seams are glued together using a PVA glue.

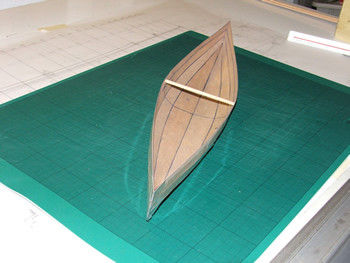

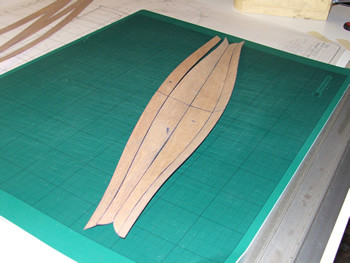

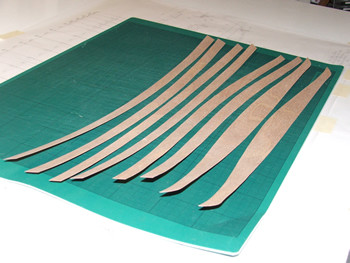

Photos of the Christine Model Canoe

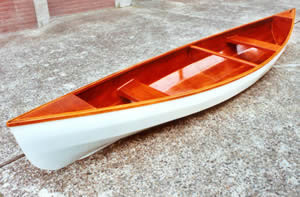

Photos of the full size Christine Canoe


These 3 photos show examples of the full-size Christine - she was designed as a 4 plank (per side) canoe but the full-size plans now also include the plank shapes for a 5 plank version.

 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the construction plus six A4 sheets giving a photo sequence and instructions for the model's construction and fit-out.

 Model Particulars
 Hull Length     21 7/8" (555mm)

 Hull Beam     4 1/2" (115mm)




 Order the Christine Model Canoe Plans

Use the upper Buy Plan Now Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

CHRISTINE MODEL CANOE PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £10

UK/EU/US/Elsewhere - FULL PLAN £10

(Approx. 11 Euros/$13 USD)






LITTLE KATE CANOE MODEL
 The Selway Fisher Little Kate open canoe is a modification of the classic John Rushton Wee Lassie design which he was producing over a hundred years ago. The originals were of lapstrake Cedar planking but Selway Fisher modified the design so that it can be built using the frameless ply/epoxy or stitch and tape construction.

 She is very much a lightweight single man canoe easily portaged from water to water. The plans are for a model of the wider 32" Little Kate.

 Construction uses 0.4 - 0.75mm aircraft modelling plywood and the tack and tape (stitch and tape) construction method.

 The plans give full-size plank shapes for the model. The planks are cut out of the thin plywood using scissors and held together with Sellotape before the seams are glued together using a PVA glue.

 Details of the full-size Fisher Little Kate 11' canoe can be found at Selway Fisher Little Kate canoe.

Photos of the Little Kate Model Canoe



Photos of the full size Little Kate Canoe





 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the construction plus six A4 sheets giving a photo sequence and instructions for the model's construction and fit-out.

 Model Particulars
 Hull Length     17 1/2" (444mm)

 Hull Beam     4 1/4" (109mm)




 Order the Little Kate Model Canoe Plans

Use the upper Buy Plan Now Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

LITTLE KATE MODEL CANOE PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £10

UK/EU/US/Elsewhere - FULL PLAN £10

(Approx. 11 Euros/$13 USD)

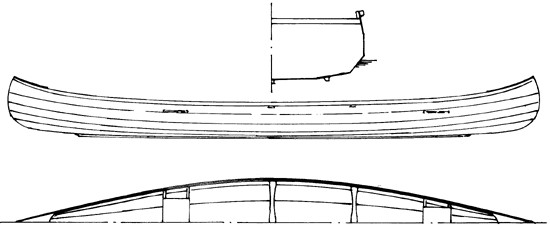

PETERBOROUGH CANOE MODEL
 The name 'Peterborough' was often used to describe any open Canadian type canoe but more especially those with a lightly rockered hull which had a moderate beam and some tumblehome.

 The Fisher Peterborough has relatively narrow waterlines fore and aft to make her quick to paddle and a stable shallow veed bottom amidships with tumblehome to make her stable with a narrow beam.

  The full-size Peterborough has a length of 15'7" and a beam of 32 1/2".Details of the full-size Fisher Peterbourgh canoe can be found on the Selway Fisher Design web site at 15'7" Peterborough Canoe.

 Construction uses 0.4 - 0.75mm aircraft modelling plywood and the tack and tape (stitch and tape) construction method. The plans give full-size plank shapes for the model.

 The planks are cut out of the thin plywood using scissors and held together with Sellotape before the seams are glued together using a PVA glue.

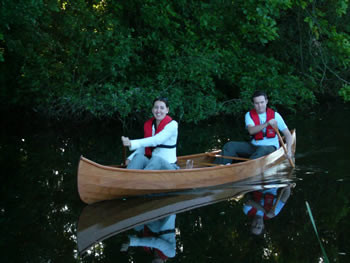

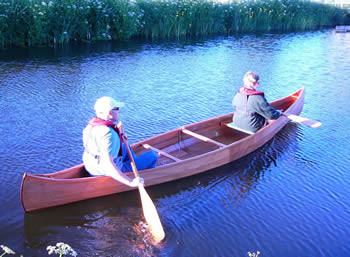

Photos of the full size 15'7" Peterborough Canoe





 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the construction plus six A4 sheets giving a photo sequence and instructions for the model's construction and fit-out.

 Model Particulars
 Hull Length     18 3/4" (476mm)

 Hull Beam     3 1/4" (82mm)




 Order the Peterborough Model Canoe Plans

Use the upper Buy Plan Now Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

PETERBOROUGH MODEL CANOE PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £10

UK/EU/US/Elsewhere - FULL PLAN £10

(Approx. 11 Euros/$13 USD)

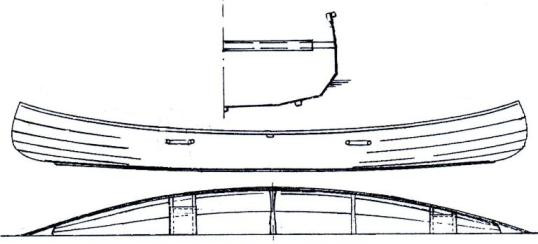

PROSPECTOR CANOE MODEL
 This is the Selway Fisher version of an old favourite - the Prospector type open canoe. The original Prospectors were originally designed in Canada and known as the "workhorse of the North".

 They had to have a good carrying capacity for all of the Prospector's gear and they had to work well through white water and wilderness. The full-size Fisher Prospector canoe is 15'8" x 35".

 Construction uses 0.4 - 0.75mm aircraft modeling plywood and the tack and tape (stitch and tape) construction method. The plans give full-size plank shapes for the model. The planks are cut out of the thin plywood using scissors and held together with Sellotape before the seams are glued together using a PVA glue.

 Details of the full-size Fisher Prospector canoe can be found at 15'8" Prospector Canoe.

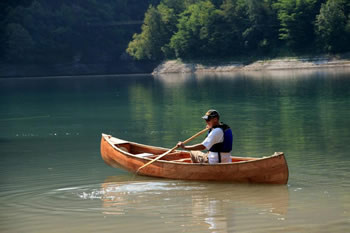

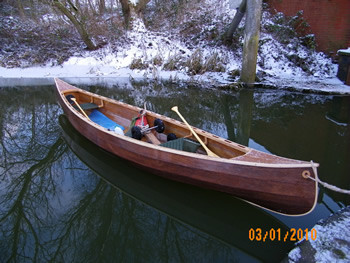

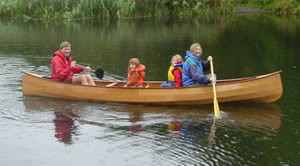

Photos of the full size 15'8" Prospector Canoe





 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the construction plus six A4 sheets giving a photo sequence and instructions for the model's construction and fit-out.

 Model Particulars
 Hull Length     18 3/4" (476mm)

 Hull Beam     3 1/2" (89mm)




 Order the Prospector Model Canoe Plans

Use the upper Buy Plan Now Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

PROSPECTOR MODEL CANOE PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £10

UK/EU/US/Elsewhere - FULL PLAN £10

(Approx. 11 Euros/$13 USD)

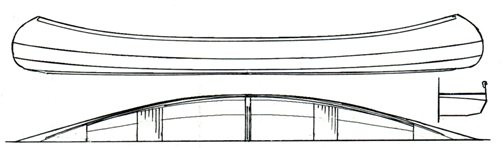

RAVEN 14' CANOE MODEL
 By popular request, we shortened the Selway Fisher 15'7" Raven to give a canoe easier to car-top on smaller vehicles.

 She takes 2 adults plus camping gear. The hull has the Raven family's 3 panels per side plus a flat bottom panel and tumblehome giving her maximum beam down at the waterline.

Details of the full-size Selway Fisher 14' Raven canoe can be found on the Selway Fisher Design web site.

Construction uses 0.4 - 0.75mm aircraft modelling plywood and the tack and tape (stitch and tape) construction method. The plans give full-size plank shapes for the model. The planks are cut out of the thin plywood using scissors and held together with Sellotape before the seams are glued together using a PVA glue


Photos of the full size 14' Raven Canoe





 Model Plans
 The model plans consist of one A1 sheet giving full-size shapes for the construction plus six A4 sheets giving a photo sequence and instructions for the model's construction and fit-out.

 Model Particulars
 Hull Length     22 3/8" (568mm)

 Hull Beam     4 5/8" (118mm)




 Order the Raven 14' Model Canoe Plans

Use the upper Buy Plan Button if you want printed plans (postage will be added - see postage costs at bottom of page).

Use the lower Buy Plan Now Button if you want the PDF plan emailed to you (no postage added).

RAVEN 14' MODEL CANOE PLANS COST

UK/EU/US/Elsewhere - FULL PLAN £10

UK/EU/US/Elsewhere - FULL PLAN £10

(Approx. 11 Euros/$13 USD)






Ordering Model Boat Plans

 We are now offering our plans either as printed plans sent by post or as PDF files which are emailed to you.

 The printed plan price excludes postal charges, which will be added to the plan price when the charge is made to your debit/credit card.

 For those wanting the plans printed and posted to them the postal charges are:

 UK - £2: EU - £9; USA - £13; Elswhere - £13.

All posted items sent outside the UK are usually sent by Royal Mail International Tracked Service.
